The WinBook XL2 Full Review
My in-depth review of the new WinBook XL2. (Last updated December 2, 1998)
As you may know from my
previous article,
WinBook sent me a pre-production model
of their new
XL-2. This unit
is a technological first as it is the only all-in-one (3 drives and battery
internal) notebook in this form factor (about 1.5" thick). Not only that, but
it has a 14.1" screen, AGP graphics, a DVD drive, an LS-120 floppy, dual pointing devices and
the option of an internal 56k modem! Oh... and what about power? How about a
300mhz Pentium II CPU, 128MB SDRAM and a 6.0GB hard drive? And for $3199,
that's not a bad deal.
This is my first full review for my own site but I will use a similar format
that I used on the Mining Company site.
- Technical: Instead of my usual
breakdown, I've added a link to WinBook for this information
-
Pictures: The pictures are from WinBook's website.
- Features Ratings: I still include
a feature by feature comparison with a listing of Pros and Cons, but I
don't total the scores. You should just judge for yourself how each
feature rates.
- Performance: I am using the new
ZD Benchmarks 99. This way you can compare them to PC Magazines newest
notebook review benchmarks.
- Conclusion: My final thoughts on
the Winbook XL2.
- The machine I tested has the following specs:
- 300 PII, 128MB SDRAM, 4MB SGRAM AGP video, 14.1" TFT screen, 6.0 GB
HDD, DVD, LS-120 FDD
56k built-in modem
- $3199
- Includes 1 year parts/labor warranty, $299 extra for 3-year Premium
Care warranty
Like I mentioned earlier, instead of repeating information, you can find the
tech specs on
WinBook's website.

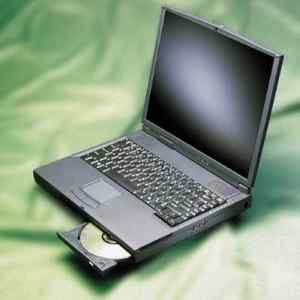

Image courtesy of Winbook
| Feature | Pros | Cons |
Score |
| Screen |
Really good screen, it was bright and very evenly lit. The image is very
clear like most LCDs. No dead/stuck pixels but you should really expect a
few as that is the standard on all LCD displays.
|
None really, this screen seems to be more evenly lit than previous ones I
have seen
|
5 |
| Keyboard |
The Winbook keyboard has the typical vertical row Home/Pg/End keys on the
right. The Backspace/Enter/'\' keys are a little smaller because of this but
it was not a problem. It had a very nice feel to it, not too hard, not too
soft. Most people should like the sturdiness of the keyboard.
|
That darn Fn key is still on the outside left. Some of the keys are a little
smaller. With keyboards that have the vertical row of "nav" keys on the right
hand side, I tend to hit them while inadvertently trying to backspace or
enter, but your hands "learn" the placement after a while.
|
4 |
| Video |
Very fast performance, uses the
ATI Rage LT Pro 3-D AGP chip with 4MB of SGRAM.
In my opinion, it is the best portable video chipset on the market.
|
None, although I'm not sure about Linux compatibility and some people would
prefer it to have dual-output capability.
|
5 |
| Pointing Device |
Pointing stick AND touchpad! You disable one or the other in the bios,
the touchpad is a Synaptics
|
None really with 2 pointing devices, and this will help solve that "Which is
better?" question (I prefer the touchpad actually)
|
5 |
| Hard Disk |
Toshiba or Hitachi 6.0GB Ultra-DMA
|
Pretty quiet, and very fast
|
5 |
| CD-Rom (DVD in this case) |
Generation II DVD 2x, can read CD-Rs and CD-RWs
|
I think it is supposed to be comparable to a 20x CD-Rom but it feels slower
than that.
|
5 |
| Floppy |
LS-120, can read older 1.44MB floppies and IS bootable.
|
Very noisy! This is more a mechanized floppy and you can tell but that is a
small price to pay for the increased storage capability
|
5 |
| Ports and Bays |
Left: One Type II PC-Card (PCMCIA) slot; modem port; fan vents
Rear: DC-in; USB; door-covered section containing PS/2, S-video, TV-out
(NTSC), VGA-out, serial and parallel; PS/2; door-covered expansion port for
docking bay/port replicator; Kensington lock
Right: IR port; line-in; mic; line-out; one Type II PC-Card (PCMCIA) slot
Front: DVD drive, LS-120 drive (side-by-side, not stacked)
Covers: 2 covers that open in the back, one for the expansion slot, the other
as mentioned above
|
No video-in or MIDI. On another note, the PC-Card slots are not stacked so
you can only use Type-II cards (that means no Type-III cards like the new
Xircom RealPort).
|
4 |
| Modular Bay |
The DVD bay is removeable but the only thing designed to go in there would be
a regular CD-ROM, don't know if there is future capability of 2nd hard drive
or 2nd battery
|
It would be nice if it was a modular bay for a 2nd battery or 2nd hard disk
because some people tend to want more flexibility
|
? |
| Battery |
If you remember my previous review of the XLi, battery life was horrendous,
I only got about 1:30 to 1:50. It could have been a bad battery because when
I ran it on this machine, I got about 3:30!! And remember that this is a
Pentium II and I ran it with power management off. I may have missed some PM
options somewhere but I set everything for
'NEVER' in the Power Management settings and turned it off in the BIOS
|
Surprisingly high for a Pentium II 300, so no cons really.
|
5 |
| Accessories |
You get all the manuals, a start-up disk, a Win98 CD, a phone cable and even
some replacement "eraser" heads for the pointing stick
|
N/A
|
N/A |
| Price |
$3199, an EXCELLENT price for an "all-in-one" machine with these features
(someone asked me to be more exact about this EXCELLENT term... well I use
it as a comparative statement against other all-in-one machines at this
level of configuration, the XL2 is one of the least expensive)
|
Based in Ohio, they charge sales tax to Ohio residents but not the other
states
|
4 |
| Performance |
With a WinStone 98 score of 21.1, this is higher than most of the scores
compared to the latest
PC Mag notebook roundup
|
None
|
5 |
| Zoomed Video, CardBus and USB |
Supports all 3, and BOTH card slots support Zoomed Video and CardBus
|
I will probably drop this category because this is becoming standard on
laptops
|
N/A |
| Software & Drivers |
You only get the Win98 CD with the WinBook and some other small utility
programs
|
None
|
N/A |
| Warranty and Tech Support |
1 year parts and labor, and I believe you can purchase a 3-year extended
warranty for $299 that includes free shipping
I've gotten conflicting reports of their tech support but overall I would have
to say that it's pretty good, you may want to do a
DejaNews search to find out owner
opinions.
|
None really
|
3 |
| Sound System |
The speakers are well placed, above the keyboard out of hands way (one of my
favorite places). Sound is typical for a notebook but better than many others
I've heard. The volume control is a via Fn-F8/Fn-F9 and has a mute via Fn-F10.
The mic is located just to the right of the cursor keys
The sound system is ESS Technology,
ESS Maestro-2M
with 3d support
|
I prefer the dial for the volume but that's just my preference
|
4.5 |
| Size and Weight |
Well... have you seen any other "all-in-one" machine that is 1.5" thick and
weighs about 7lbs? When I have it next to a Gateway Solo 9100, it is amazing
how much smaller it looks. Although the specs say it's 7 lbs, my bathroom
scale at home (which we all know is a scientifically accurate measuring
device) reads about 7.8lbs. I would give it a 7.5lb rating to adjust for
error (I have been told that the production units weigh about 7.4lbs). One
thing is that it feels really sturdy, I was thinking that it may
be due to how everything is probably compacted in there (which may be good or
bad?). But overall, this is the perfect size for a 14.1" all-in-one notebook.
|
None really, maybe thinner and lighter but then you would have to remove the
drives
|
5 |
I could total the scores, but this would be irrelevant. Just know that each
category has a high of 5 points. And I repeat again:
Remember that this is a relative
scoring system and should only be compared to units that fall in the same
class. Rather than looking at the total score, you should actually see how I
rate each feature and then decided for yourself how well this machine suits
your needs.
If you have any specific questions about any of the categories or
any suggestions about how I can improve my rating system... please
let me know.
WS98 GWM98 DWM98 CPU32 CWM98 NSI PH
--------------------------------------
21.1 134 1040 733 871 * 3:27
The following is for the Winbook XLi
19.8 103 845 687 974 * 1:38
WS98: Business Winstone 98, GWM98: Business Graphics WinMark 98, DWM98:
Business Disk WinMark 98, CPU32: CPUMark32, CWM98: CD-ROM WinMark98,
NSI: Norton SI, PH: PowerHour 1.0
* Norton SI could not run on Windows 98
You can compare these scores to
PC Magazine's latest notebook benchmarks.
I've also included scores for the new ZD Benchmark 99 version (which I am sure PC Mag will
use on their next reviews issue):
WS99 GWM99 DWM99 CPU32 FPU99
-----------------------------
16.5 99 2020 741 1540
WS99: Business Winstone 99, GWM99: Business Graphics WinMark 99, DWM99:
Business Disk WinMark 99, CPU32: CPUMark32-99, FPU: FPU WinMark-99
I would have to say that the WinBook is the best all around notebook out
there. I would prefer a better tech support program similar to Transmonde
but they are working on it. Pricewise, for these features, you can't beat it
and even with the extra $299 for the Premium Care warranty, it is well worth
the money.
Here are some additional notes:
- There are 2 sets of indicator lights. 3 are at the bottom of the display
and are used for power, batter and batter status (these can also be seen
on the outside of the display. The 2nd set is along the right hand edge of
the unit and are for CD, HDD, floppy, num lock, caps lock and scroll lock.
There are Fn key combos for turning off the display, switching between LCD
and external monitor, standby, suspend, brightness, volume, mute and loud
- The fan noise is noticeable but that is normal
- The pointing stick is an IBM Trackpoint I believe (but due to trademarks
I don't think they can say that)
- The XL2 comes loaded with Windows 98
- WinBook also includes the manual electronically on the system (which is
very helpful).
- Like the big mail order companies, WinBook does have a 30-day
satisfaction guaranteed return policy.
- Shipping was delayed for a while on the initial orders but I believe they
started rolling out November 1
- The $99 port replicator has a MIDI/gameport along with 2 PS/2 ports, USB
and all the other ports
- On service, I was told by someone at Winbook:
"WinBook received a four-star rating (equal to Dell, Gateway, Micron and
Toshiba) in the 11/98 survey of PC World readers (see p. 115, 11/98 PC
World) Reliability was three-stars, a big improvement over scores in the
7/98 issue of PC Magazine. Our own data shows continuing improvements in
reliability. By 1999, we should be on par with the best in both service
and reliability."
I have gotten both complaints and praises about Winbook's service so it's
hard to say but I tend to be in favor of their efforts and would rate them
as reliable.
- Maximum RAM is 128MB but I think it should be able to go up to 256MB with
the new 128MB DIMMs (2 slots, independently filled).
- A press release that I got says you can order it with CD-ROM instead of
DVD, which would save you a couple of hundred but I'm not sure about that
so you may want to call them.
- There are some other points I may not have touched on but went over
in my First Glance review and my
XL2 FAQ.
Even without the thinner form factor, the XL2 is an excellent desktop
replacement. But its size and the fact the it is one of the few (if only)
that offers DVD, LS-120, dual pointing devices and an AGP chipset in an
all-in-one design makes it stand out on its own.
If you still have more questions for me, please post a
message. For more info from WinBook about the XL2 or if you are thinking
about buying one, their phone number is 800-254-7806 or
www.winbook.com.
|
